EcoFlow Extra Battery (EB) Compatibility Matrix
This matrix defines which power stations (Main Units) can accept which Extra Batteries.
🔋 DELTA Series Compatibility
| Extra Battery Model | Capacity | Chemistry | DELTA 2 | DELTA 2 Max | DELTA Max (1600) | DELTA Max (2000) | DELTA Pro | DELTA Pro 3 |
|---|---|---|---|---|---|---|---|---|
| DELTA 2 EB | 1024 Wh | LFP | ✅ | ❌ | ❌ | ❌ | ❌ | ❌ |
| DELTA 2 Max EB | 2048 Wh | LFP | ✅ | ✅ | ❌ | ✅ | ❌ | ❌ |
| DELTA Max EB | 2016 Wh | NCM | ✅ | ✅ | ✅ | ✅ | ❌ | ❌ |
| DELTA Pro EB | 3600 Wh | LFP | ❌ | ❌ | ❌ | ❌ | ✅ | ✅¹ |
| DELTA Pro 3 EB | 4096 Wh | LFP | ❌ | ❌ | ❌ | ❌ | ✅ | ✅ |
| DELTA 3 (All) EB | 1024/2048Wh | LFP | ✅ | ✅ | ❌ | ❌ | ❌ | ❌ |
| DELTA 3 Ultra EB | 3072 Wh | LFP | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ |
| BLADE EB | 1024 Wh | LFP | ✅ | ❌ | ❌ | ❌ | ❌ | ❌ |
| WAVE 3 EB | 1024 Wh | LFP | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ |
🔋 RIVER Series Compatibility
The RIVER series is mostly standalone. Only specific models support expansion via dedicated battery modules.
| Extra Battery Model | Capacity | Main Unit | Connection Type |
|---|---|---|---|
| RIVER EB Module | 288 Wh | RIVER (Original) | Bolt-on (Internal Bus) |
| RIVER Pro EB | 720 Wh | RIVER Pro (Original) | Proprietary External Cable |
| RIVER 3 Max EB | 245 Wh | RIVER 3 Plus | Proprietary External Cable |
Note: The RIVER mini and RIVER 2 series (2, Max, Pro) have NO extra battery ports. They are designed as fixed-capacity units.
¹ Requires the DELTA Pro to DELTA Pro 3 Adapter cable. ² Requires the multi-step adapter chain (see below).
- Important Note on DELTA Max 1600: Newer LFP-based batteries (Delta 2 EB, Delta 2 Max EB) are generally incompatible with the 1600W model due to firmware limitations and high discharge risks (The 1C Rule).
🏗 Generations Explained
Version 1 (V1) - The NCM Era
- Models: DELTA Max EB (2016Wh), RIVER Pro EB (720Wh).
- Chemistry: NCM (Lithium Nickel Cobalt Manganese).
- Lifespan: ~800 cycles to 80%.
- Compatibility: Can be used with V2 units (like Delta 2 Max), but the battery will drain/charge at its native NCM speed, which is slower than LFP.
Version 2 (V2) - The LFP Era
- Models: DELTA 2 EB, DELTA 2 Max EB, DELTA Pro EB.
- Chemistry: LFP (LiFePO4).
- Lifespan: 3000+ cycles to 80%.
- Compatibility: “Universal” within the Delta 2/Max family.
Version 3 (V3) - The Pro 3 Era
- Models: DELTA Pro 3 EB, DELTA 3 Plus EB.
- Chemistry: LFP.
- Key Change: High-voltage architecture in Pro 3.
- Backwards Compatibility: Pro 3 batteries can work with Pro 1 units using a specific cable adapter.
⚠️ Important Rules for Mixing
- Ports limit:
- DELTA 2: Only 1 Extra Battery port.
- DELTA 2 Max / DELTA Max: 2 Extra Battery ports. Can mix different batteries (e.g., 1x Delta 2 EB + 1x Delta Max EB).
- Sequential Behavior: When mixing NCM and LFP batteries, the system operates as follows:
- Discharge: The Main Unit usually discharges first and hits 0% before the Extra Battery starts providing significant power (or vice versa, depending on SoC logic).
- Charge: The Main Unit charges last. The Extra Battery is topped up first to maximize its dedicated storage.
- No “Station-to-Station”: NEVER connect two Power Stations together via the Extra Battery ports (e.g., Delta 2 to Delta Max). This can cause back-feeding and irreversible damage to both BMS units.
- Pro vs. Rest: The “Pro” line (Pro 1, Pro 3, Ultra) uses a physically larger and electrically different connector than the “Standard Delta” line. They are NOT interchangeable without specific EcoFlow adapters.
- BLADE EB Secret: The robotic mower battery (BLADE EB) is electrically identical to a Delta 2 EB and works perfectly with the Delta 2 station using a standard XT150 cable.

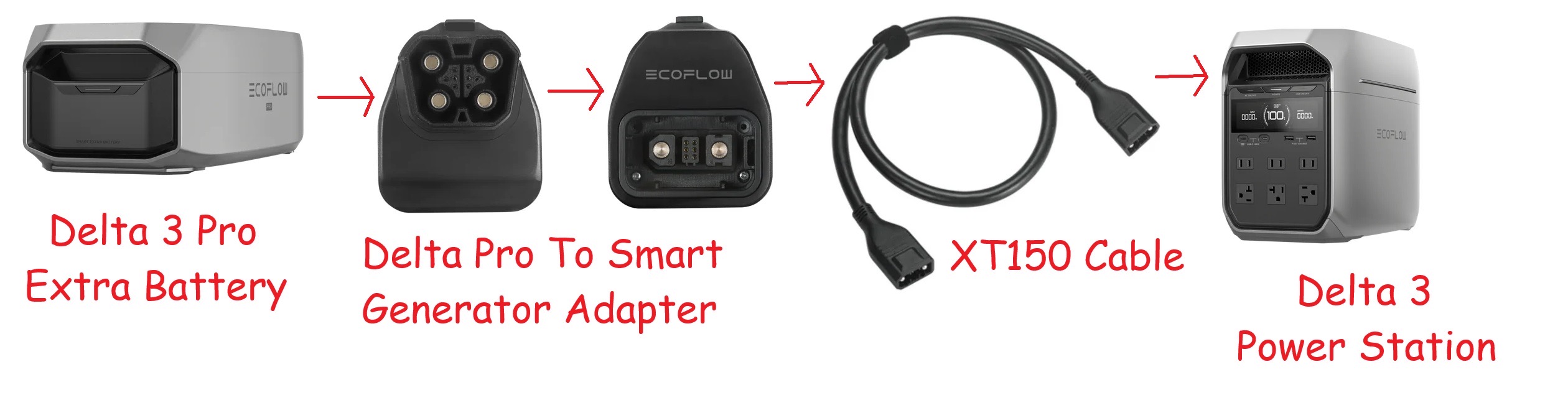

🔌 Cross-Generation Adapter Chain
Connecting a Pro-tier battery (Delta Pro / Delta Pro 3 EB) to a Standard-tier station (Delta 2 / Delta 2 Max / Delta 3 Plus / Delta 3 Max) is possible but requires a specific chain of adapters because of the different physical connectors (4-pin vs XT150).
The “Bridge” Sequence:
- Extra Battery (e.g., DELTA Pro 3 EB) - Port: Female (4-pin)
- EB Cable (In-box with battery) - Connectors: Male / Male (4-pin)
- EcoFlow Delta Pro to Smart Generator Adapter - In: Female (4-pin) / Out: Female (XT150)
- XT150 Cable (Standard) - Connectors: Male / Male (XT150)
- Power Station (e.g., DELTA 3 Plus) - Port: Female (XT150)
Why this works: Small stations (Delta 2, 3 Plus, 2 Max) use a 48V-60V battery bus via XT150. Pro batteries also operate in a compatible range (though Pro 3 is “high voltage”, its expansion port is adapted for generator/older EBs). The Smart Generator Adapter acts as the physical bridge between the heavy-duty 4-pin EcoFlow connector and the standard XT150.
